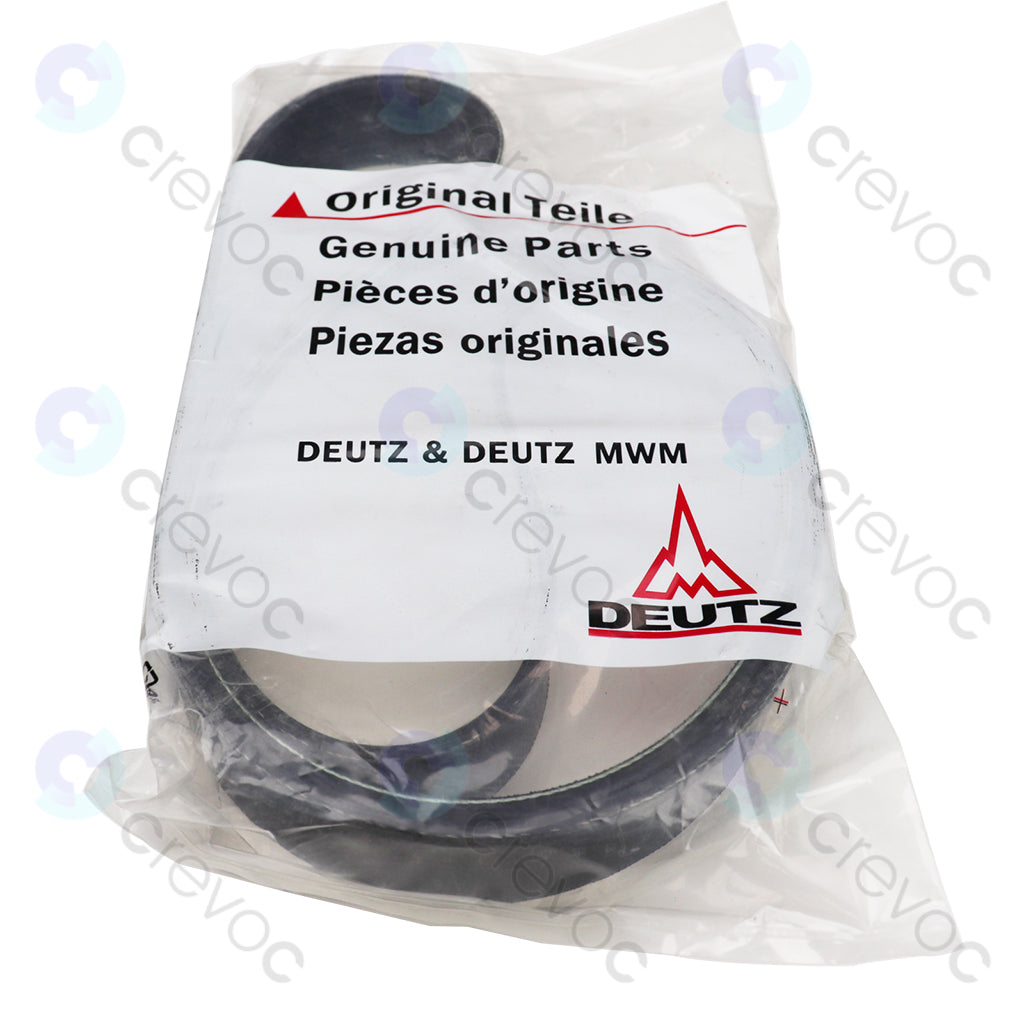

01183378 Belt for DEUTZ TCD2012L062V Replace No. 01181615

01183378 Belt for DEUTZ TCD2012L062V

🔧 OEM Replacement & Compatibility

• Replaces: DEUTZ belt 01181615 (direct upgrade)

• Engine Model: Specifically designed for DEUTZ TCD2012L062V diesel engines

• Cross-Compatible: May fit other TCD2012 variants (verify with DEUTZ documentation)

⚙️ Technical Specifications

• Type: Serpentine/Multi-Rib Belt (typically 6-8 ribs)

• Material:

  • High-performance EPDM rubber for extreme heat and oil resistance

  • Reinforced fiber core for durability under heavy loads

• Operating Parameters:

  • Temperature range: -40°C to +130°C

  • Max RPM: 6,500

  • Tension: 90–100 N deflection force (new belt)

🛠️ Key Functions

Drives critical components in TCD2012L062V engines:
✔ Turbocharger
✔ Cooling system (water pump, fan)
✔ Hydraulic pumps (if equipped)
✔ Alternator & A/C compressor

🏭 Common Applications

Used in heavy-duty equipment with TCD2012L062V engines:

• Construction: Excavators, loaders, compactors

• Agriculture: High-power tractors, harvesters

• Material Handling: Heavy forklifts, terminal trucks

• Power Generation: Industrial generators

🔍 Identification Features

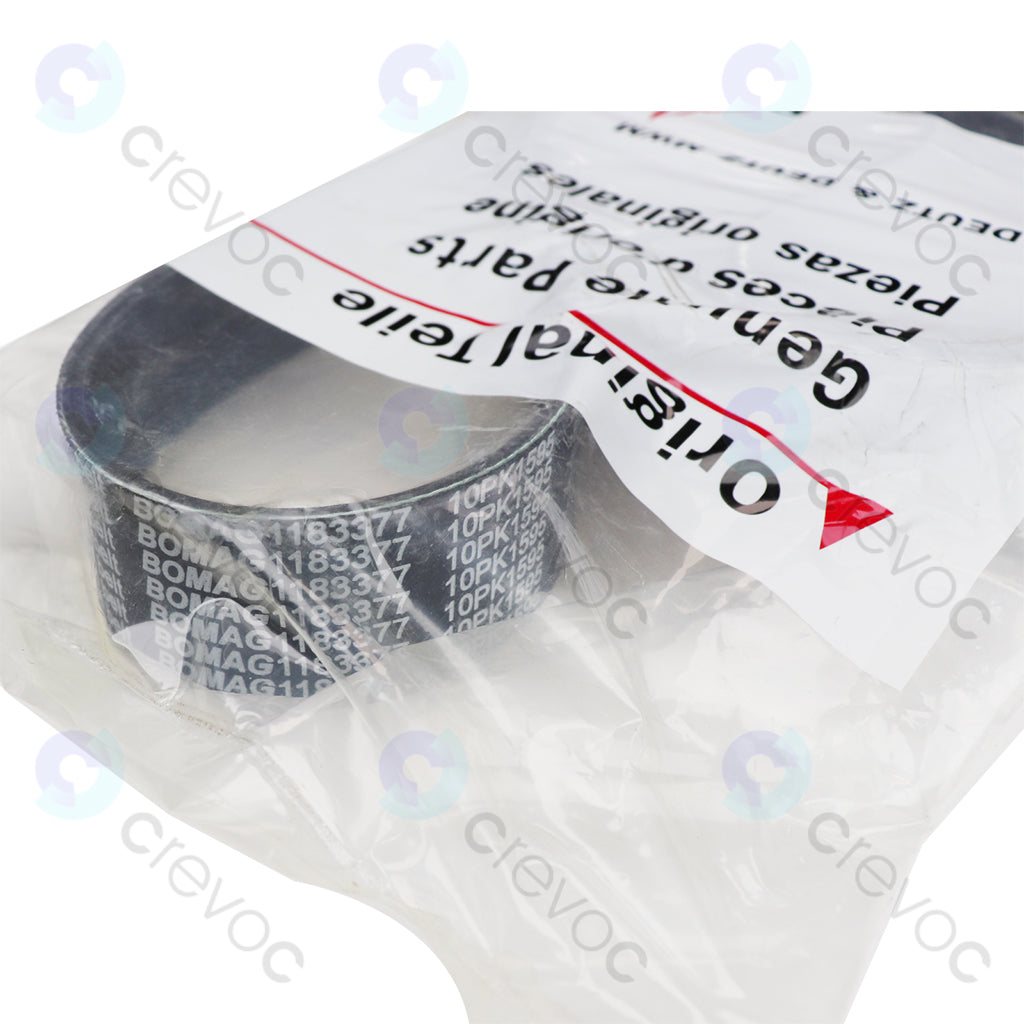

• DEUTZ OEM part number (01183378) molded on belt

• Anti-static design to protect electronic components

• Precision rib profile for optimal pulley grip

⚠️ Installation & Maintenance

1. Pre-Installation Checks:

   • Inspect all pulleys for wear or misalignment

   • Clean grooves thoroughly before installation

   • Verify correct belt routing per engine manual

2. Tensioning Guidelines:

   • Manual tensioners: 8–10 mm deflection at 10 kg force

   • Automatic tensioners: Ensure indicator is within range

   • Torque specs: Refer to DEUTZ service manual

3. Break-in Procedure:

   • Run engine at idle for 15–20 minutes

   • Re-check tension after first 50 operating hours

🔄 Replacement Indicators

Replace immediately if the belt shows:

• Deep cracks (>1 mm between ribs)

• Glazing or hardening of the surface

• Missing rib segments or frayed edges

• Oil/fuel contamination causing swelling

This 01183378 belt is the latest DEUTZ-approved replacement for 01181615, ensuring reliable power transmission in demanding conditions. Always confirm compatibility with your specific engine configuration before installation.
