01183379 Belt for DEUTZ TCD2013L062V Replace No. 01182604

01183379 Belt for DEUTZ TCD2013L062V

🔧 OEM Replacement & Compatibility

• Replaces: DEUTZ belt 01182604 (direct upgrade)

• Engine Model: Specifically designed for DEUTZ TCD2013L062V diesel engines

• Cross-Compatible: May fit other TCD2013 variants (verify with DEUTZ documentation)

⚙️ Technical Specifications

• Type: Serpentine/Multi-Rib Belt (typically 6-8 ribs)

• Material:

  • High-performance EPDM rubber for extreme heat and oil resistance

  • Reinforced fiber core for durability under heavy loads

• Operating Parameters:

  • Temperature range: -40°C to +130°C

  • Max RPM: 6,500

  • Tension: 90–100 N deflection force (new belt)

🛠️ Key Functions

Drives critical components in TCD2013L062V engines:
✔ Turbocharger
✔ Cooling system (water pump, fan)
✔ Hydraulic pumps (if equipped)
✔ Alternator & A/C compressor

🏭 Common Applications

Used in heavy-duty equipment with TCD2013L062V engines:

• Construction: Excavators, loaders, compactors

• Agriculture: High-power tractors, harvesters

• Material Handling: Heavy forklifts, terminal trucks

• Power Generation: Industrial generators

🔍 Identification Features

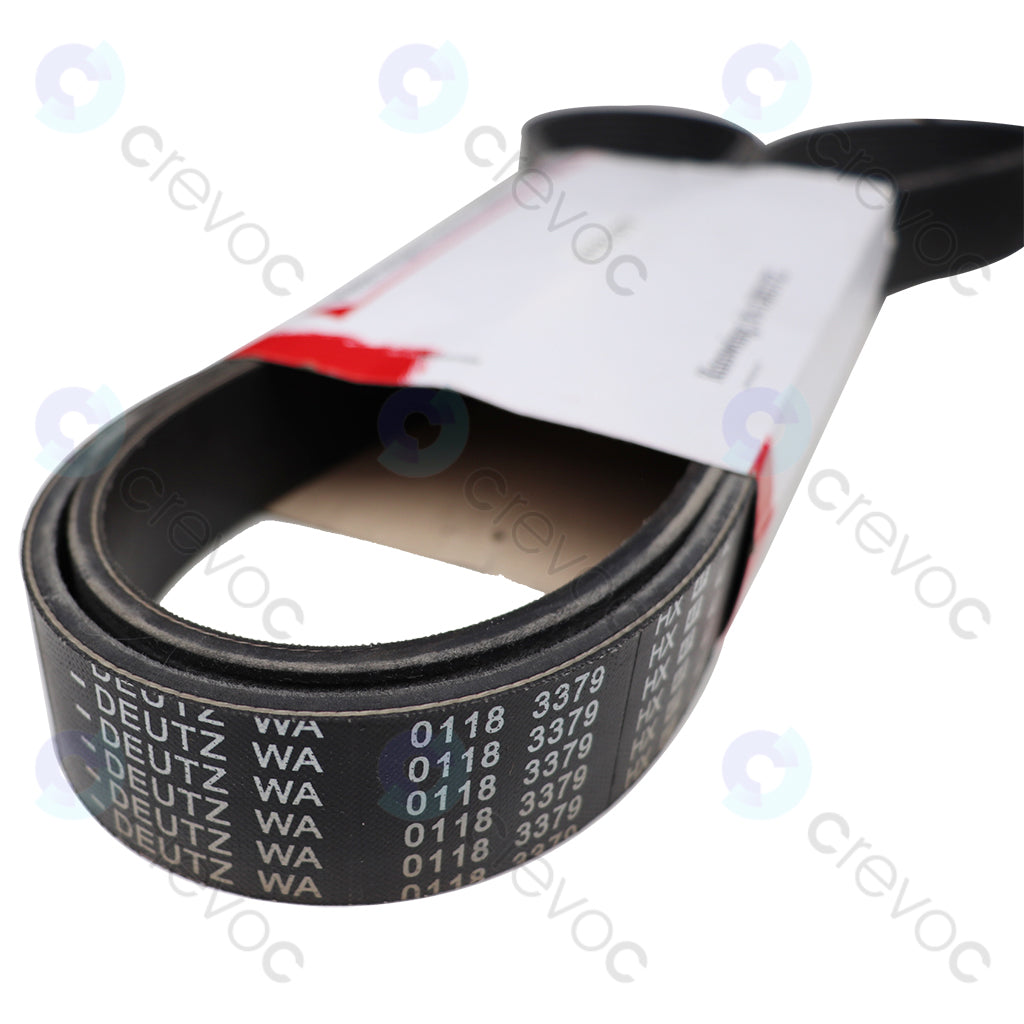

• DEUTZ OEM part number (01183379) molded on belt

• Anti-static design to protect electronic components

• Precision rib profile for optimal pulley grip

⚠️ Installation & Maintenance

1. Pre-Installation Checks:

   • Inspect all pulleys for wear or misalignment

   • Clean grooves thoroughly before installation

   • Verify correct belt routing per engine manual

2. Tensioning Guidelines:

   • Manual tensioners: 8–10 mm deflection at 10 kg force

   • Automatic tensioners: Ensure indicator is within range

   • Torque specs: Refer to DEUTZ service manual

3. Break-in Procedure:

   • Run engine at idle for 15–20 minutes

   • Re-check tension after first 50 operating hours

🔄 Replacement Indicators

Replace immediately if the belt shows:

• Deep cracks (>1 mm between ribs)

• Glazing or hardening of the surface

• Missing rib segments or frayed edges

• Oil/fuel contamination causing swelling

This 01183379 belt is the latest DEUTZ-approved replacement for 01182604, ensuring reliable power transmission in demanding conditions. Always confirm compatibility with your specific engine configuration before installation.

For exact specifications, refer to the DEUTZ TCD2013L062V service manual or consult an authorized DEUTZ dealer.

Note: This belt is part of DEUTZ’s updated component series, featuring improved durability and performance over the previous version (01182604)
