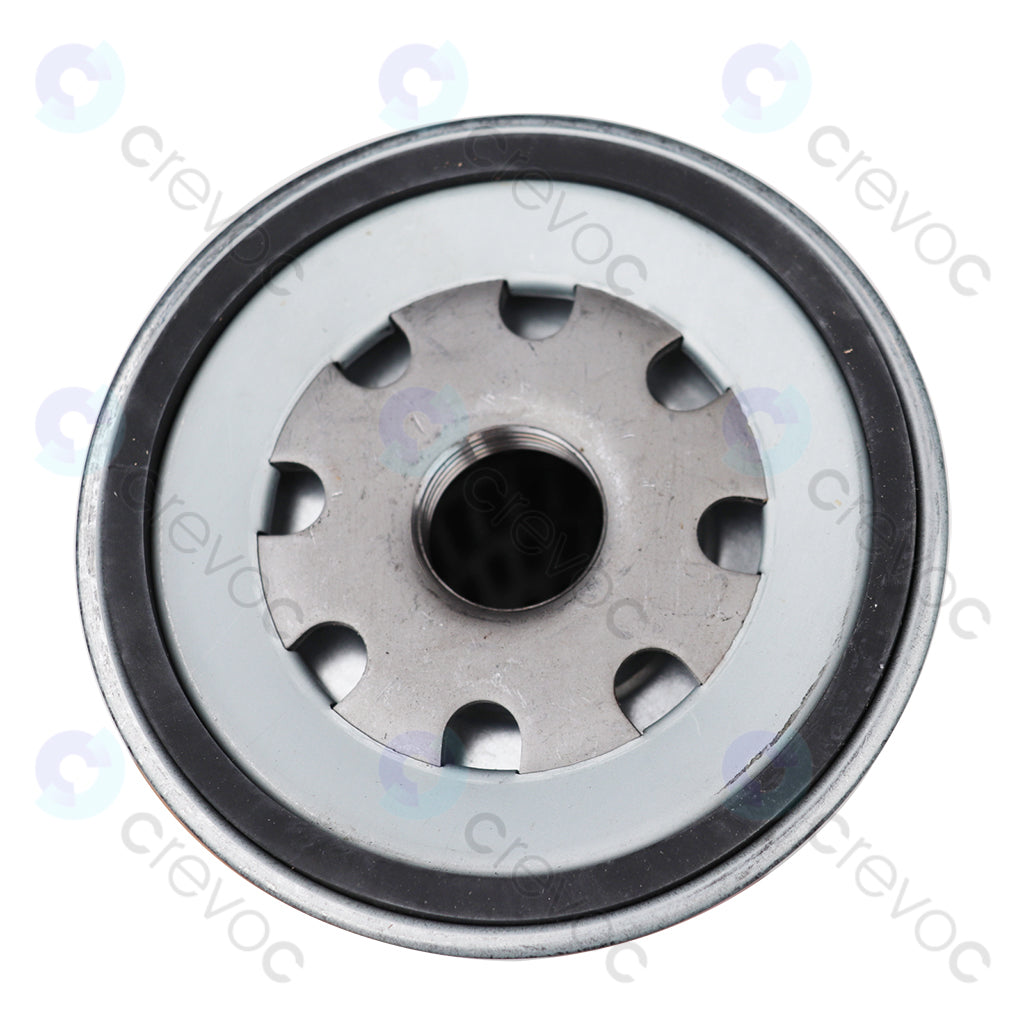

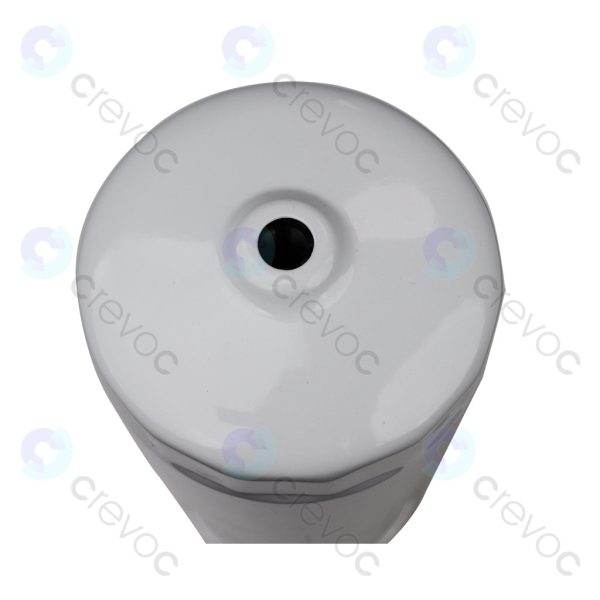

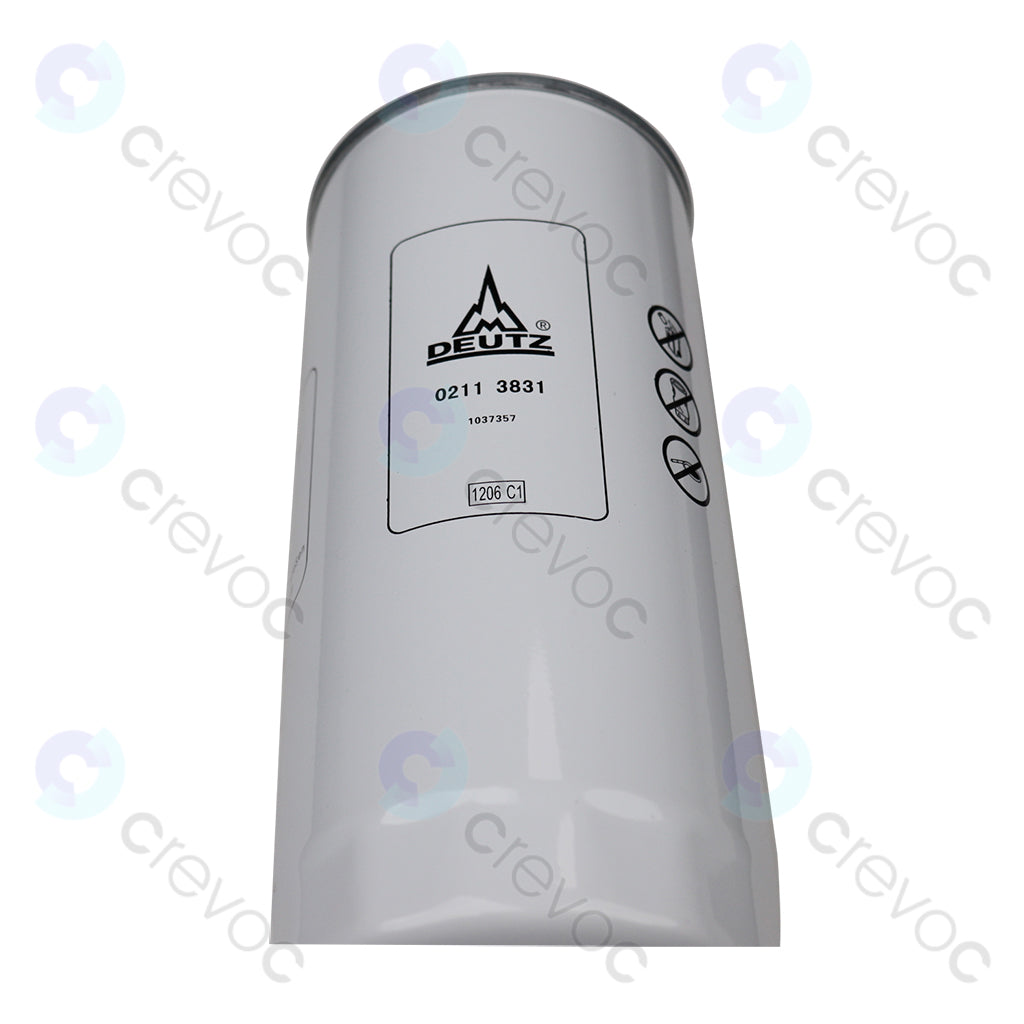

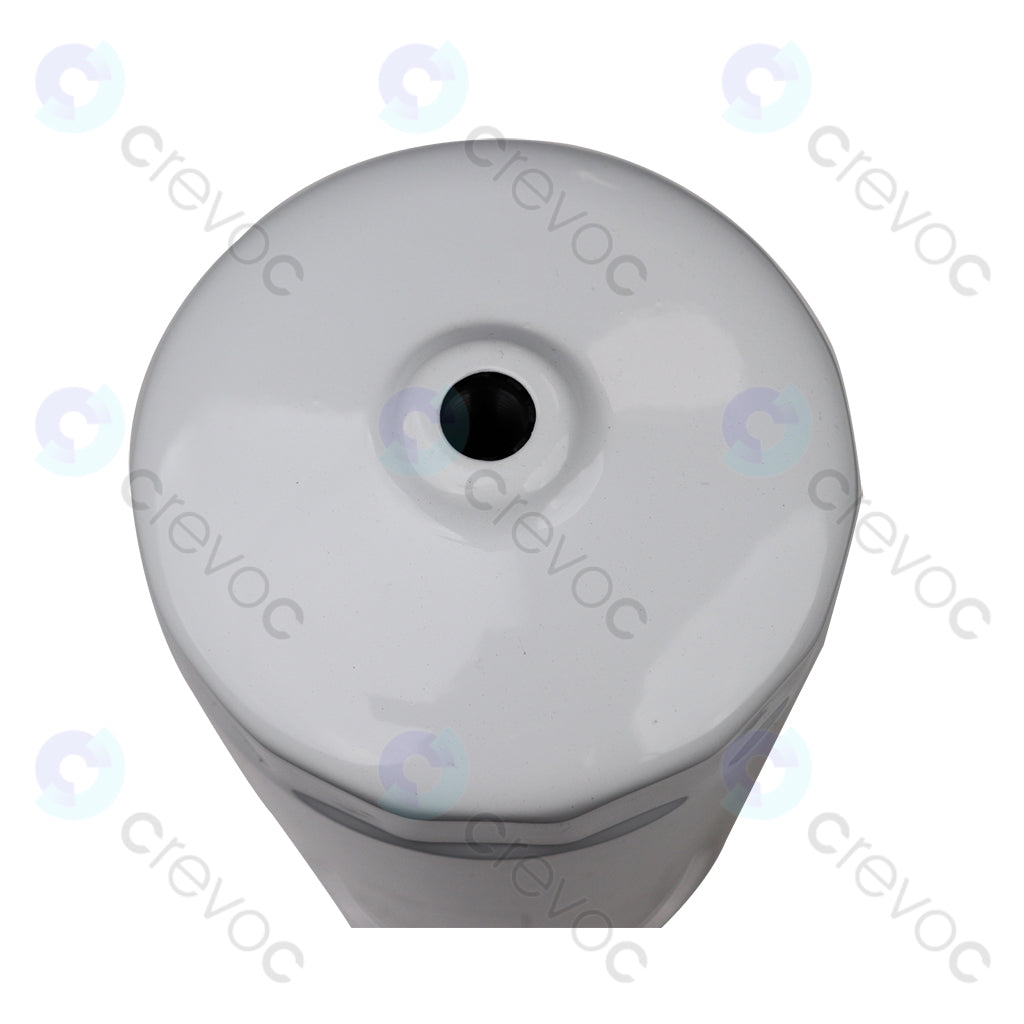

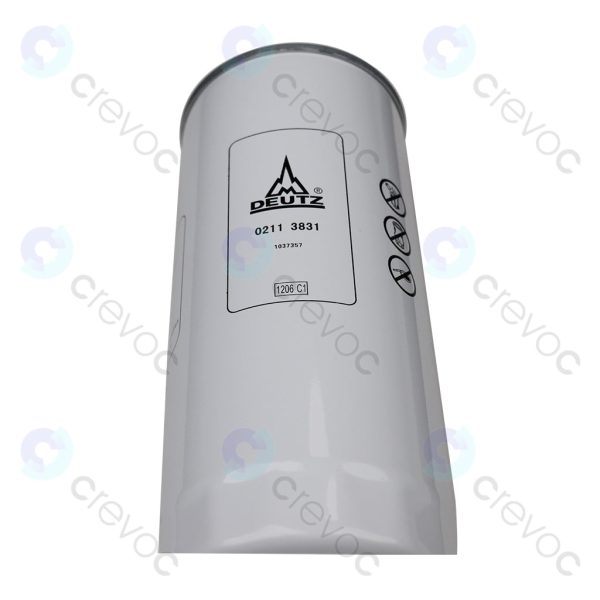

02113831 Filter for DEUTZ TCD2013/2013 BFM1013/2012

The 02113831 is an oil filter designed for engines such as the TCD 2012, TCD 2013, BFM 1013, and BFM 2012. It serves as a main (full-flow) oil filter, ensuring clean lubrication by removing fine contaminants from the engine oil.

Key Specifications:

• Type: Spin-on, full-flow oil filter

• Thread Size: M20x1.5 (standard for Deutz filters)

• Filtration Efficiency: ~10–20 microns (typical for main oil filters)

• Bypass Valve: Yes (~1.5–2 bar opening pressure)

• Anti-Drain Valve: Likely included (prevents dry starts)

• Dimensions (approx.):

  • Height: ~100–110 mm

  • Diameter: ~90–95 mm

  • Gasket Outer Diameter: ~76 mm

Compatible Engines:

• DEUTZ TCD 2012 / TCD 2013 (4-cylinder turbocharged diesel)

• DEUTZ BFM 1013 / BFM 2012 (mechanical injection engines)

• May also fit other Deutz models with similar oil systems

Cross-Reference & Equivalent Filters:

Important Notes:

✔ Replacement Interval: Typically every 500 hours or per Deutz maintenance schedule.
✔ Installation: Hand-tighten (no tools) and ensure the old gasket is removed.
✔ Warning: Using incorrect filters may cause oil starvation—always verify dimensions before replacement.
