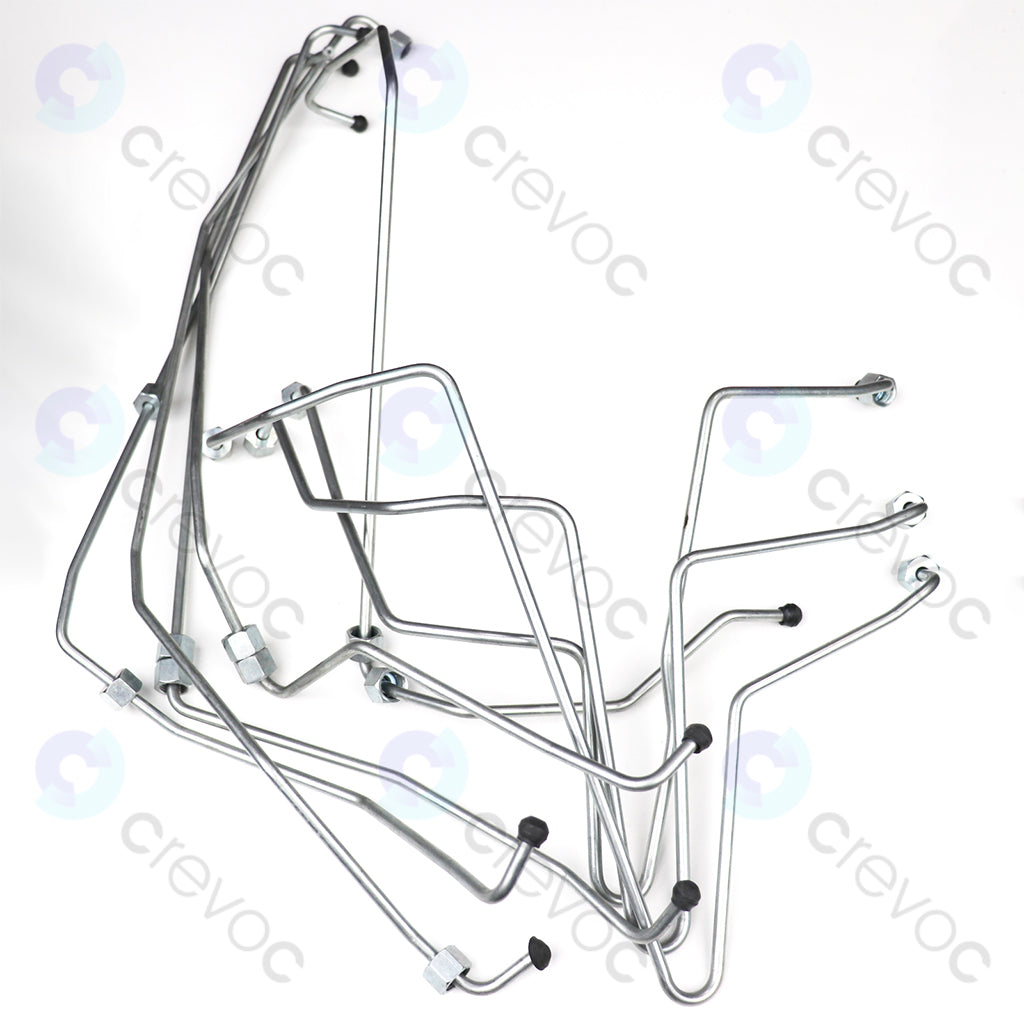

BFM1015 High Pressure Pipe Kit for Deutz BFM1015 PN: 04264711+04264712+04264713+04264714+04264715+04264717+04264719+04264720

The BFM1015 High-Pressure Pipe Kit (Part Numbers: 04264711, 04264712, 04264713, 04264714, 04264715, 04264717, 04264719, 04264720) is a  Deutz assembly for the BFM1015engine’s fuel injection system. Below are the key details:

Kit Contents & Function

1. Included Pipes (8 total):

   • 04264711, 04264712, 04264713, 04264714, 04264715: High-pressure steel fuel lines (injection pump to injectors).

   • 04264717, 04264719, 04264720: Return lines/leak-off pipes (injector to fuel manifold).

2. Material:

   • Cold-drawn seamless steel tubing (ISO 8434-1 standard).

   • Corrosion-resistant coating (zinc-nickel plating).

3. Pressure Rating:

   • Main delivery pipes: 1,800+ bar (designed for Bosch/Deutz injection systems).

   • Return lines: 5–10 bar.

Compatibility

✔ Fits:

• Deutz BFM1015 (6-cylinder, mechanical injection).

• BF6M1015 variants (verify engine SN).

❌ Not for:

• Electronic injection engines (e.g., TCD2015).

Installation Notes

1. Torque Specifications:

   • Banjo bolts: 30–35 Nm (use new copper washers).

   • Line nuts: 25–30 Nm.

2. Critical Steps:

   • Bleed air from fuel system after installation.

   • Inspect for leaks at idle and under load.

3. Warning:

   • Never bend pipes—pre-formed to exact engine geometry.

   • Replace as a set—mixing old/new pipes risks pressure imbalances.

Cross-Reference
