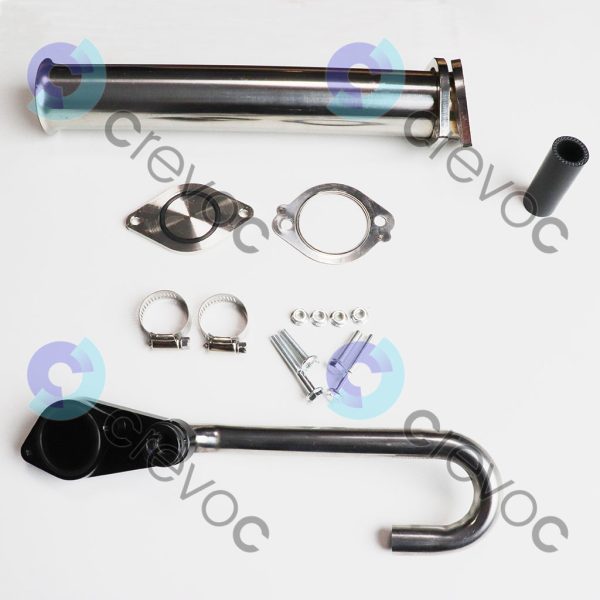

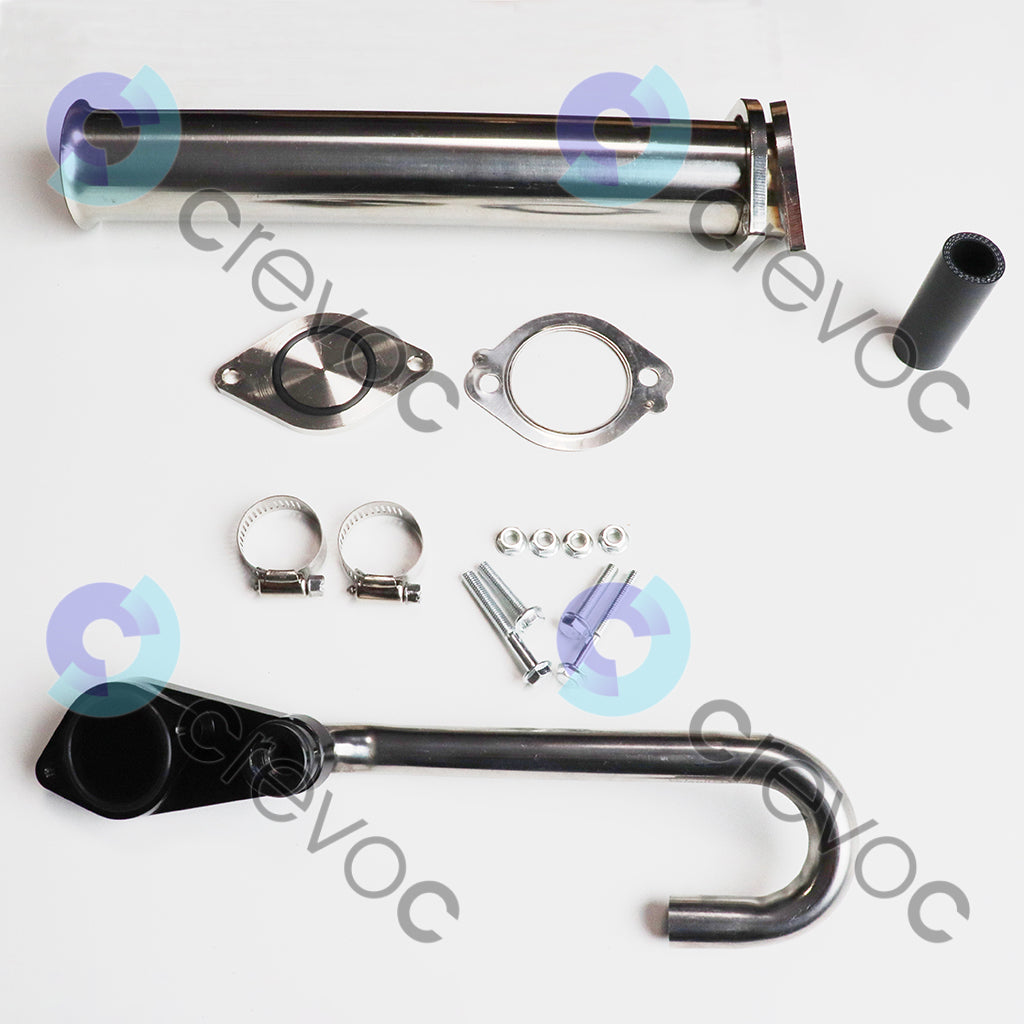

Ford 6.0L 2003-2007 F250 EGR Bypass & Delete kit

Here’s the complete technical breakdown for the Ford 6.0L Power Stroke EGR Bypass & Delete Kit (2003-2007 F-250/F-350), including critical installation insights and legal considerations:

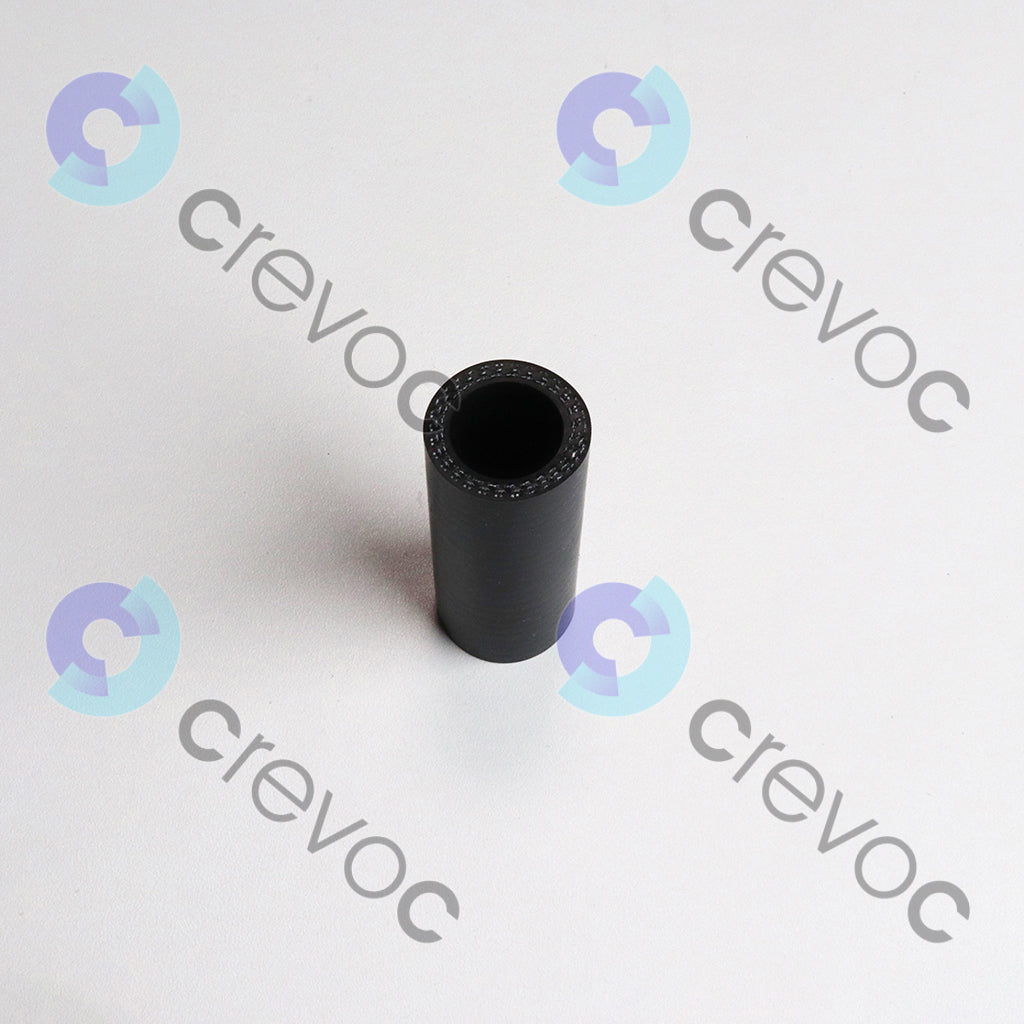

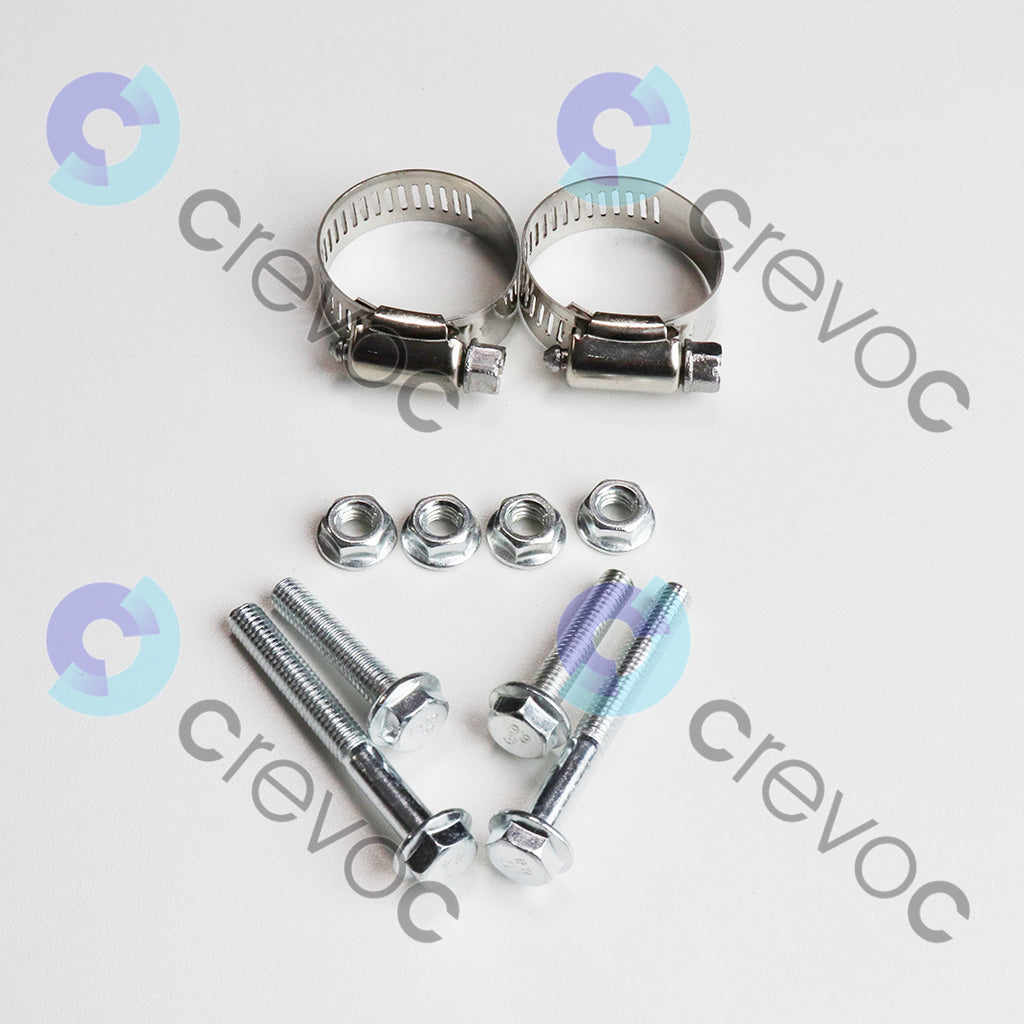

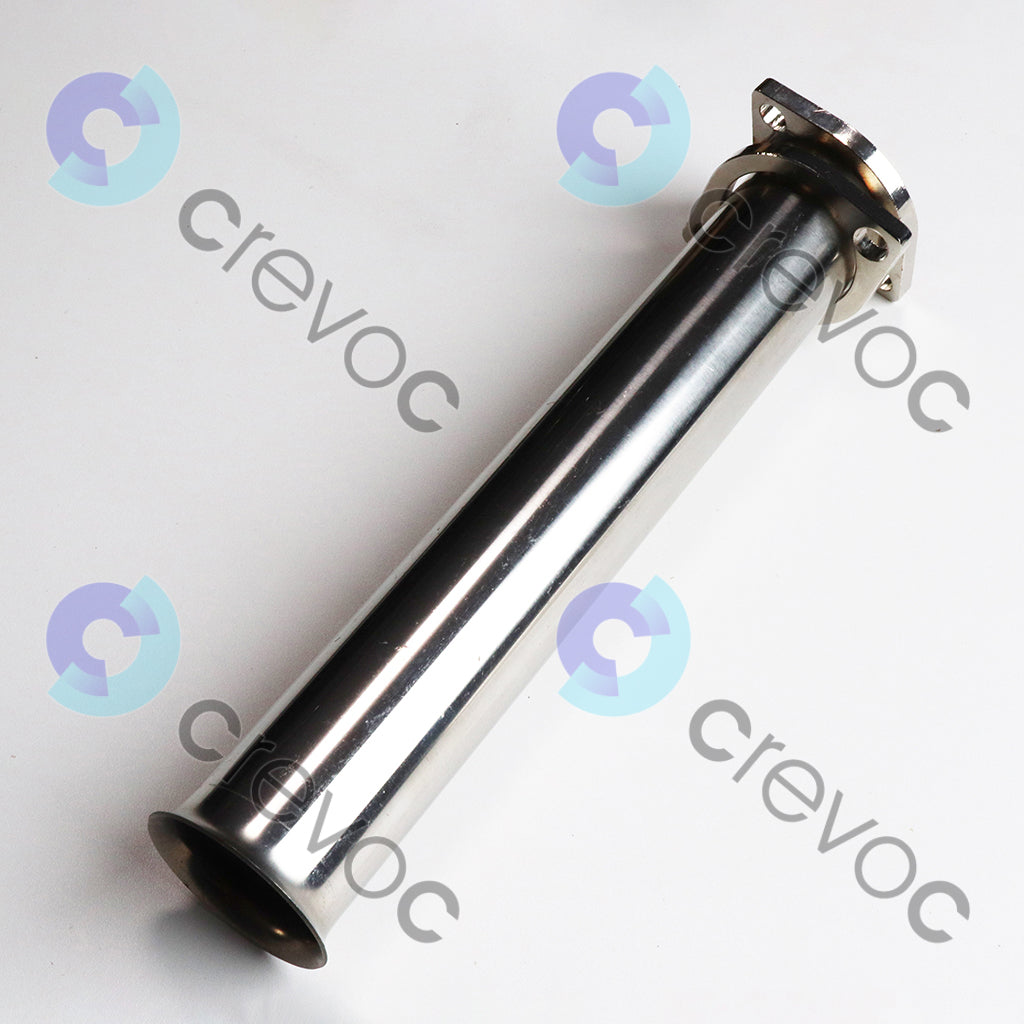

🔧 Kit Components & Engineering

⚠️ 6.0L-Specific Warnings

1. Oil Cooler Prep Required:

   • Deleting EGR doubles coolant flow to the oil cooler

   • Must flush cooling system (VC-9 recommended) to prevent clogging

2. STC Fitting Risk:

   • Increased exhaust pressure may accelerate HPOP STC fitting failures

3. Turbo Concerns:

   • VGT vanes may stick without EGR backpressure (requires more frequent cleaning)

🛠️ Installation Protocol

Tools Needed:

• Torx T30 (EGR valve)

• 1/2″ Crowfoot Wrench (coolant line fittings)

• Torque Wrench (18 ft-lbs for intake plate)

Critical Steps:

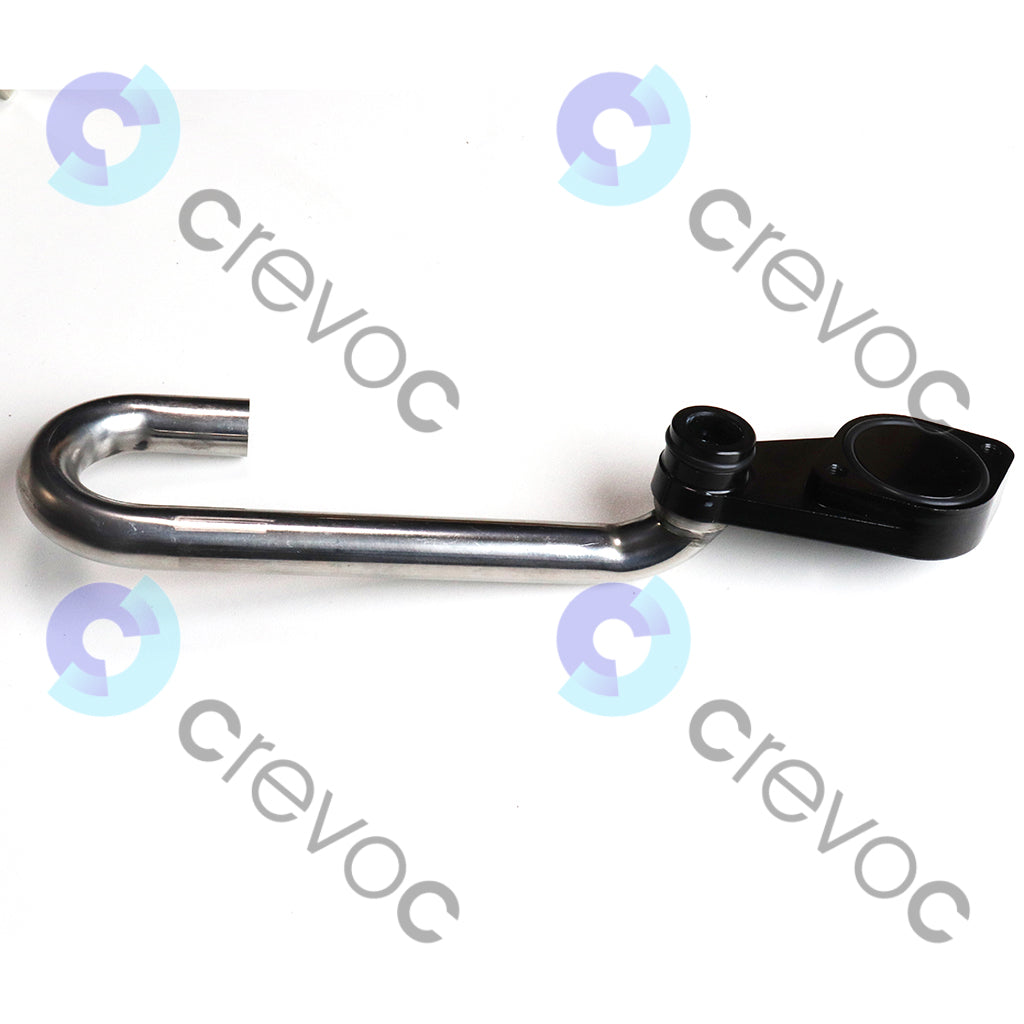

1. Coolant System Mods:

   • Install coolant bypass lines before disassembly

   • Use Motorcraft Gold coolant only

2. EGR Valve Handling:

   • Leave electrical connector plugged in (prevents CEL)

   • Secure valve outside engine bay if tuner doesn’t disable it

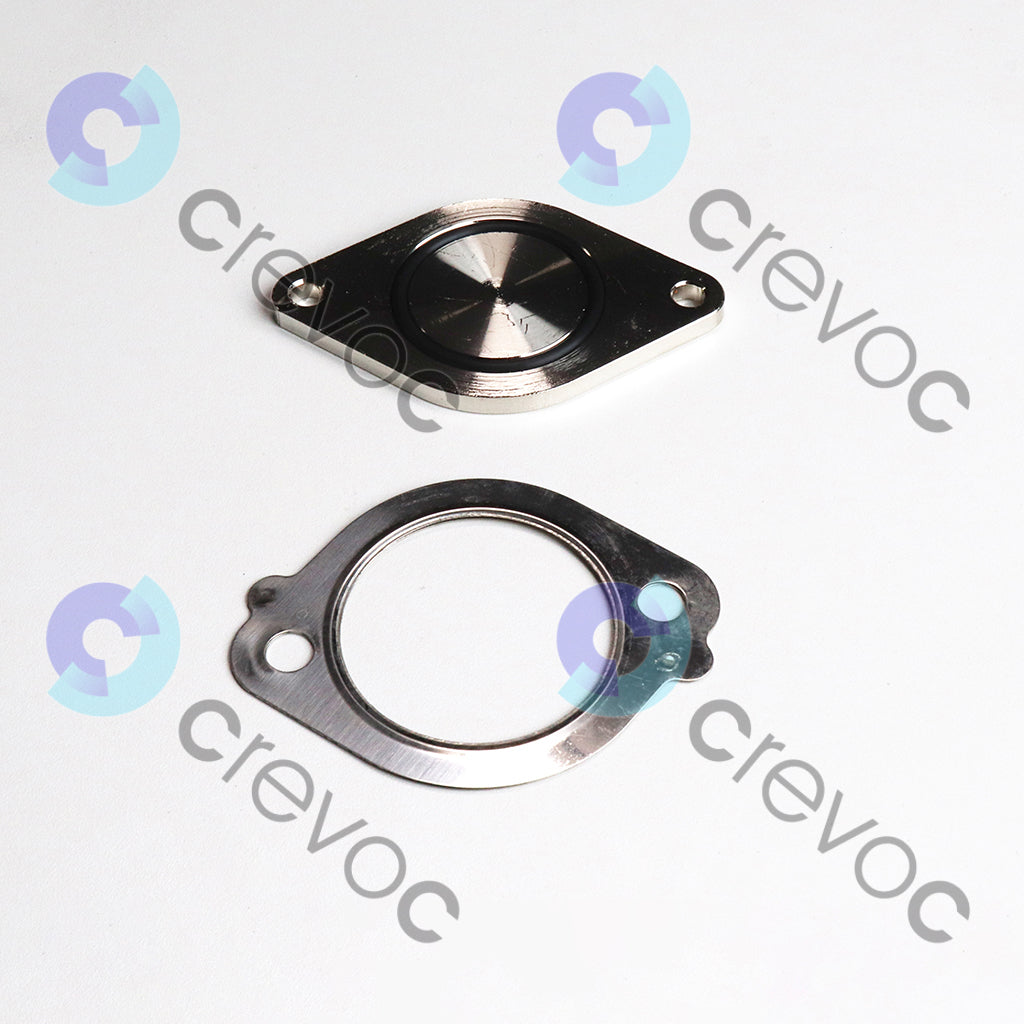

3. Exhaust Sealing:

   • Apply Remflex gasket #RF3025 (handles thermal expansion)

⚡ Performance Data

Proven Benefits:

• Eliminates cracked EGR coolers ($1,200 repair)

• Prevents oil cooler failures (from contaminated coolant)

• Restores 15-20 lost HP from stock EGR flow

🚨 Legal & Warranty Impact

Dealer Consequences:

• Permanent “EMISSIONS TAMPER” flag in OASIS

• Voids entire powertrain warranty (not just emissions)

💻 Tuning Requirements

Non-Negotiable Needs:

• Disable:

  • EGR valve commands (PID 0524)

  • Coolant flow diagnostics (P0488/P0401)

• Adjust:

  • VGT control tables (compensate for backpressure loss)

Recommended Tuners:

• SCT LiveWire TS+ (with custom tuning)

• H&S Mini Maxx (pre-loaded 6.0L files)

• EZ Lynk (w/ AutoCal) for real-time tweaking

🔩 Supporting Upgrades

1. Blue Spring Upgrade (Ford #3C3Z-9T517-AG)

2. BPD Oil Cooler (Bulletproof Diesel #BP6L-OC)

3. Mishimoto Intercooler (MMINT-F2D-03)

🛑 Street-Legal Alternatives

For compliant trucks:

• Ford OEM EGR Cooler Kit (4C3Z-9P456-AA)

• **Bulletproof Diesel EGR Retention System (w/ upgraded cooler)

Pro Tip:

After installation:

1. Reset KAM (Keep Alive Memory) to recalibrate VGT

2. Monitor ICP pressure (STC fitting weakness)

3. Replace degas bottle cap (higher coolant pressures)
