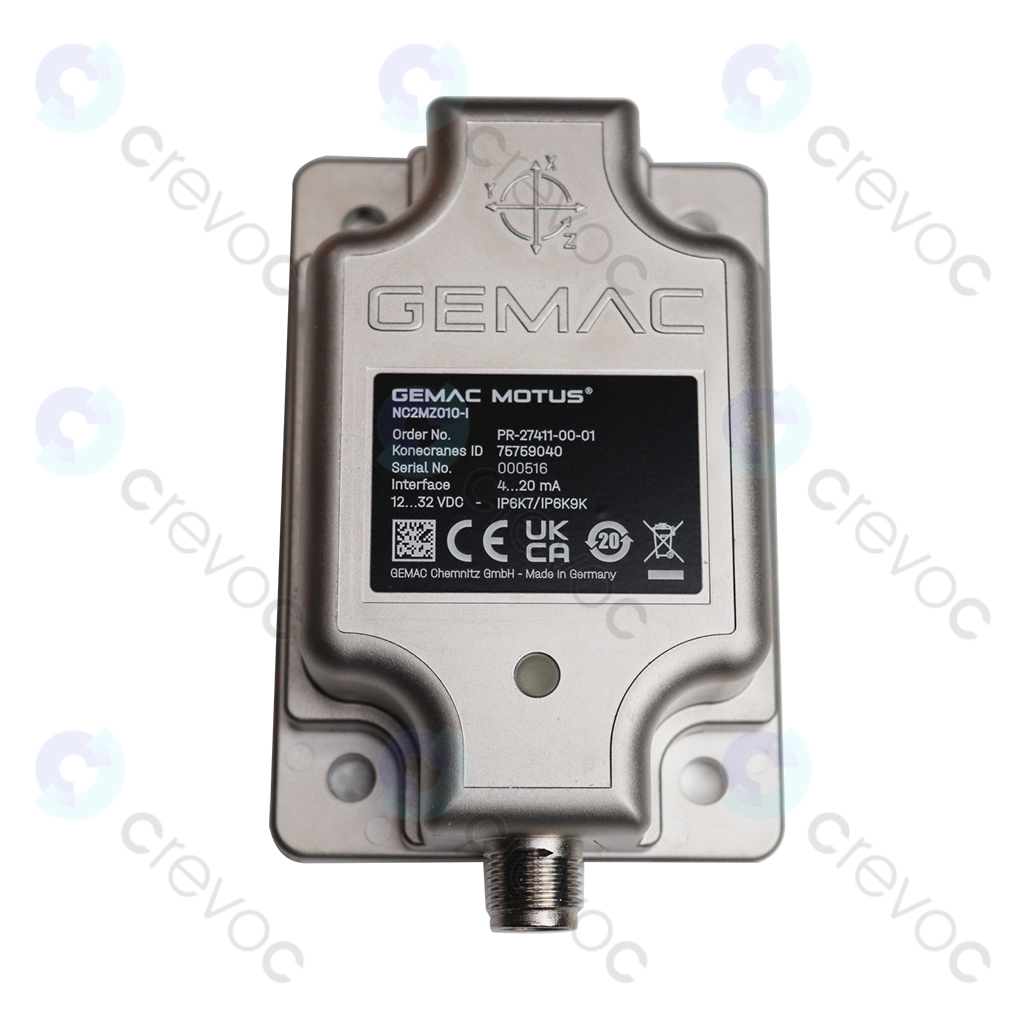

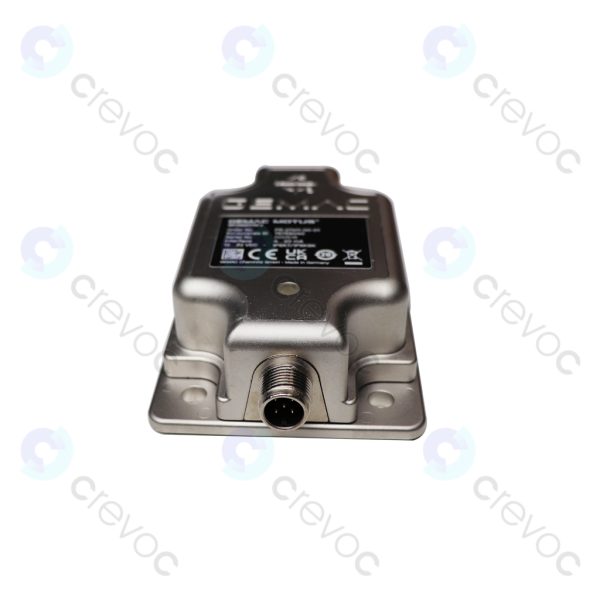

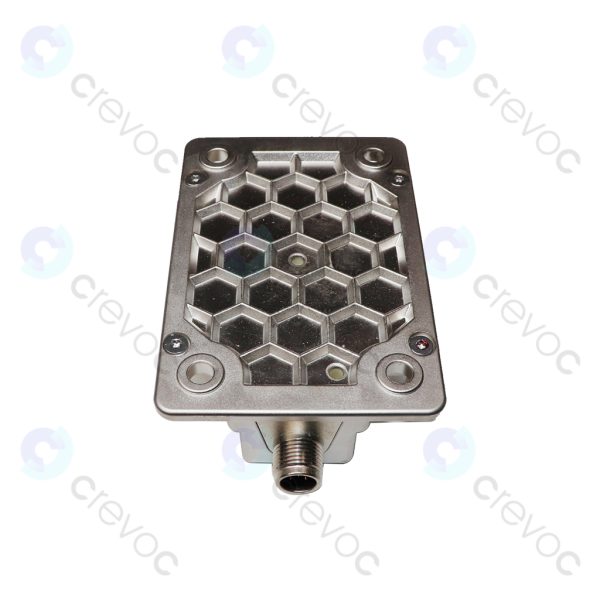

GEMAC NC2MZ010-1 Inclination Sensor for Konecrane

The GEMAC NC2MZ010-1 Inclination Sensor is a critical safety and control component specifically designed for integration with Konecranes lifting equipment. Here’s a detailed breakdown of its purpose and functionality:

Primary Function in Konecranes

The sensor serves as a real-time tilt monitoring system to:

1. Prevent Crane Tip-Over – Detects dangerous inclinations during operation (e.g., mobile cranes on uneven ground or overhead cranes with unbalanced loads).

2. Ensure Load Stability – Monitors boom/jib angles to maintain safe lifting geometry, complying with ISO 10245 and EN 13000 safety standards.

3. Enable Automatic Shutdown – Triggers emergency stops if tilt exceeds pre-set safety thresholds.

4. Wind Compensation – Helps stabilize cranes in windy conditions by providing tilt data to the control system.

Key Applications in Konecranes Equipment

• Overhead Bridge Cranes – Detects misalignment or skewing of the bridge.

• Mobile Harbor Cranes – Monitors stability during slewing/lifting operations.

• Gantry Cranes – Ensures level operation on uneven rails or surfaces.

• Loader Cranes – Prevents over-tilting during extended boom use.

Technical Specifications

How It Works in Konecranes Systems

1. Tilt Detection – Uses MEMS or pendulum-based technology to measure inclination.

2. Data Transmission – Sends real-time angle data to the crane’s PLC or safety controller.

3. Safety Actions – Activates warnings, reduces speed, or stops operations if angles approach unsafe levels.

Unique Advantages for Konecranes

• Plug-and-Play Integration – Compatible with Konecranes’ control architectures (e.g., TRUCONNECT® monitoring systems).

• Vibration Resistance – Engineered to endure high dynamic loads common in crane operations.

• Long-Term Reliability – Minimal drift over time, reducing calibration needs.

Maintenance & Troubleshooting

• Calibration – Required after mechanical impacts or periodic servicing.

• Error Codes – Common issues include wiring faults (check connectors) or EMI interference (shield cables).

• Replacement – Use GEMAC-approved parts to maintain safety certifications.
